Manual :

https://drive.google.com/file/d/1CSVTcU2do5Q684Nt13o61GMUmENuoxQX/view?usp=sharing

Hawkeye HD Transmission System,

The Thrill of HD FPV, for Everyone.

Experience True Clarity — Say Goodbye to Analog

The Hawkeye HD Transmission System is engineered for real-time, long-range flight, delivering stunning high-definition visuals with ultra-low latency.

Designed as a complete solution, it combines flight goggles, camera module, and transmission module — offering seamless 720p/60fps H.265 video for a smooth, crystal-clear experience.

Low-Latency, Long-Range Video — Up to 10 km

Powered by Hawkeye Low Latency Transmission (HDLT) technology and the dedicated Hawkeye Air Unit Camera, you’ll enjoy smooth HD imagery on the Hawkeye HD Goggles with latency as low as 35 ms from camera to display.

Paired with Hawkeye Long Distance Transmission (HLDT) and advanced H.265 encoding, the system ensures real-time video transmission up to 10 kilometers — stable, responsive, and reliable.

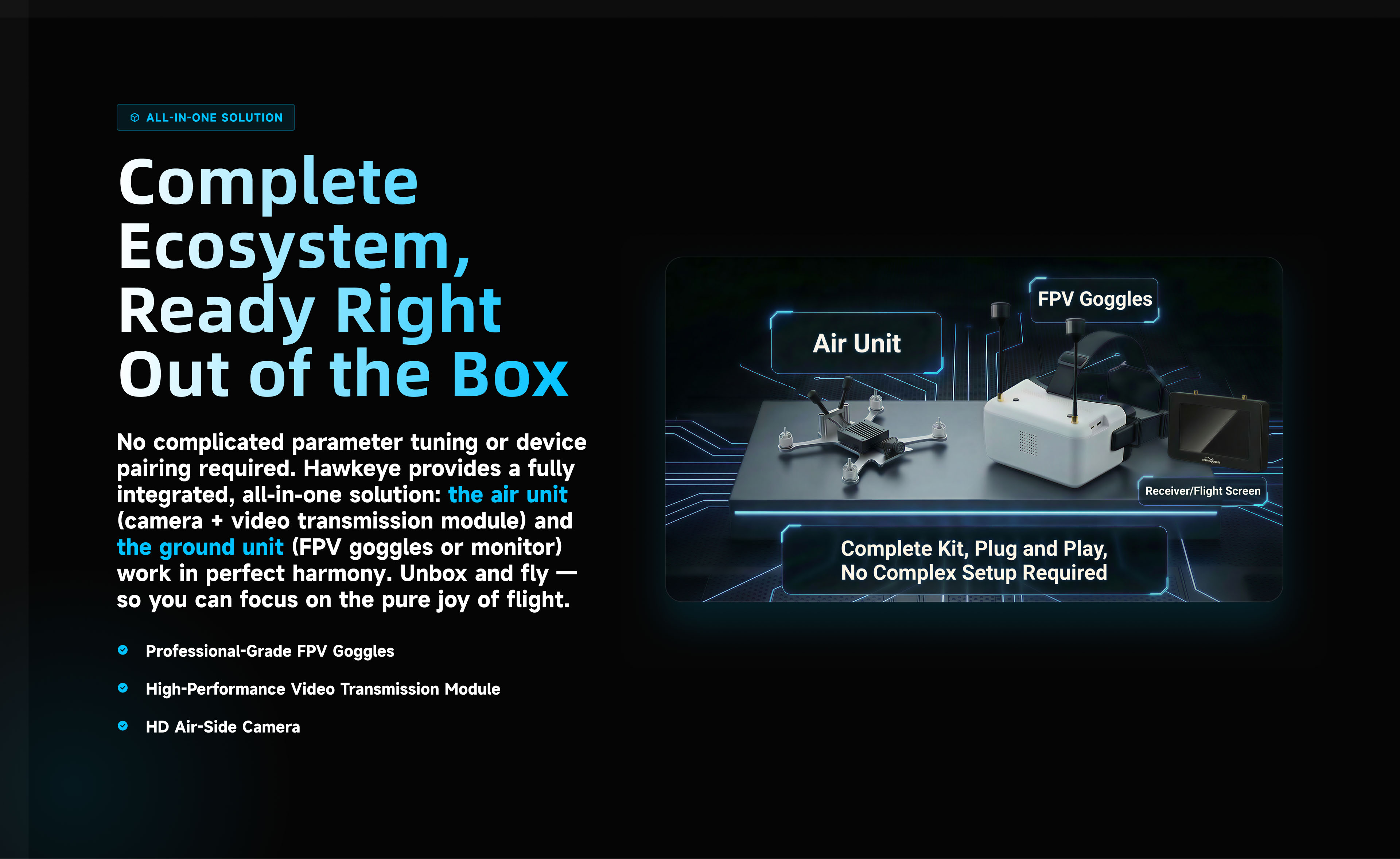

Ready to Fly — Complete Ecosystem, Plug and Play

Everything you need comes in one box:

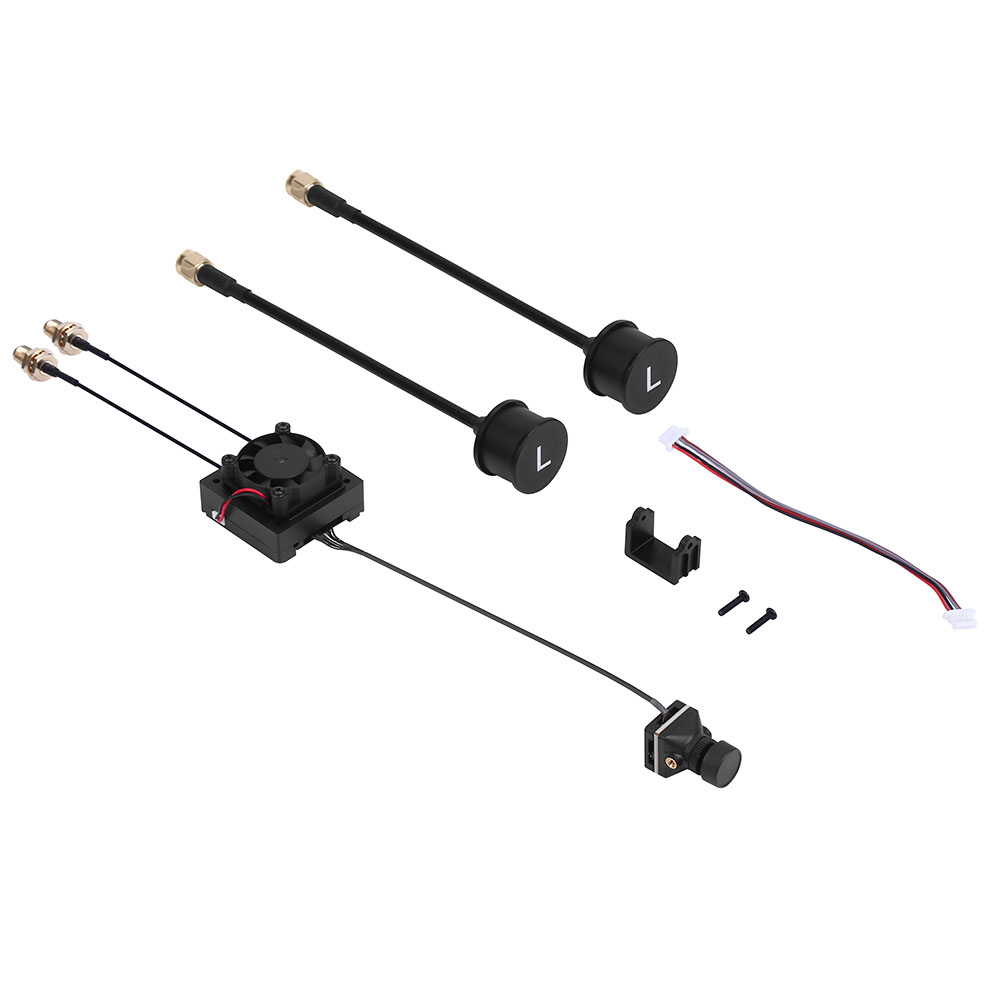

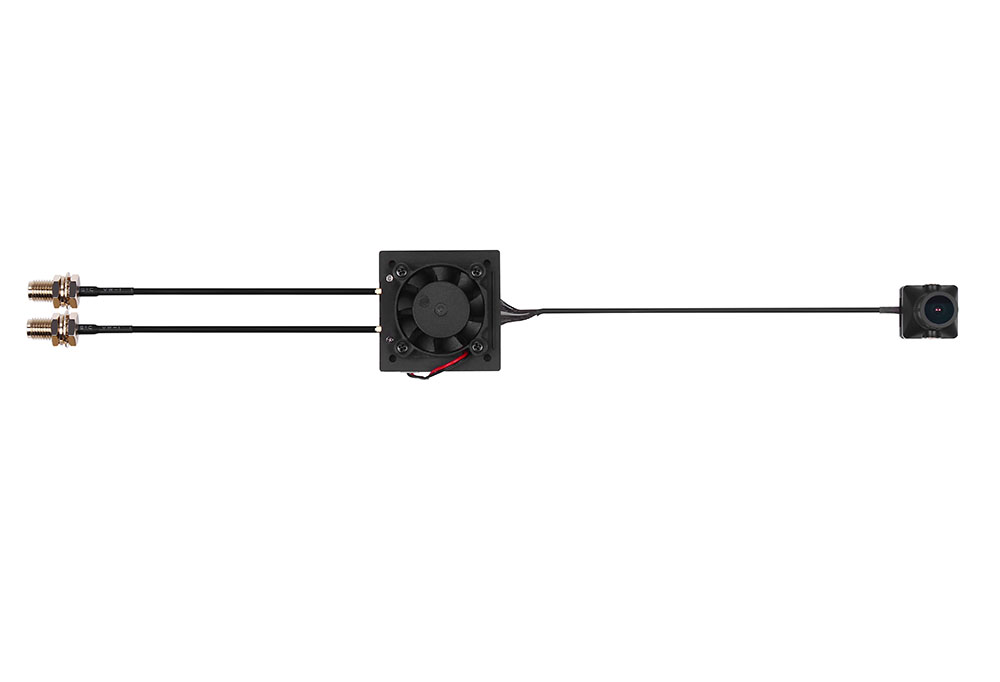

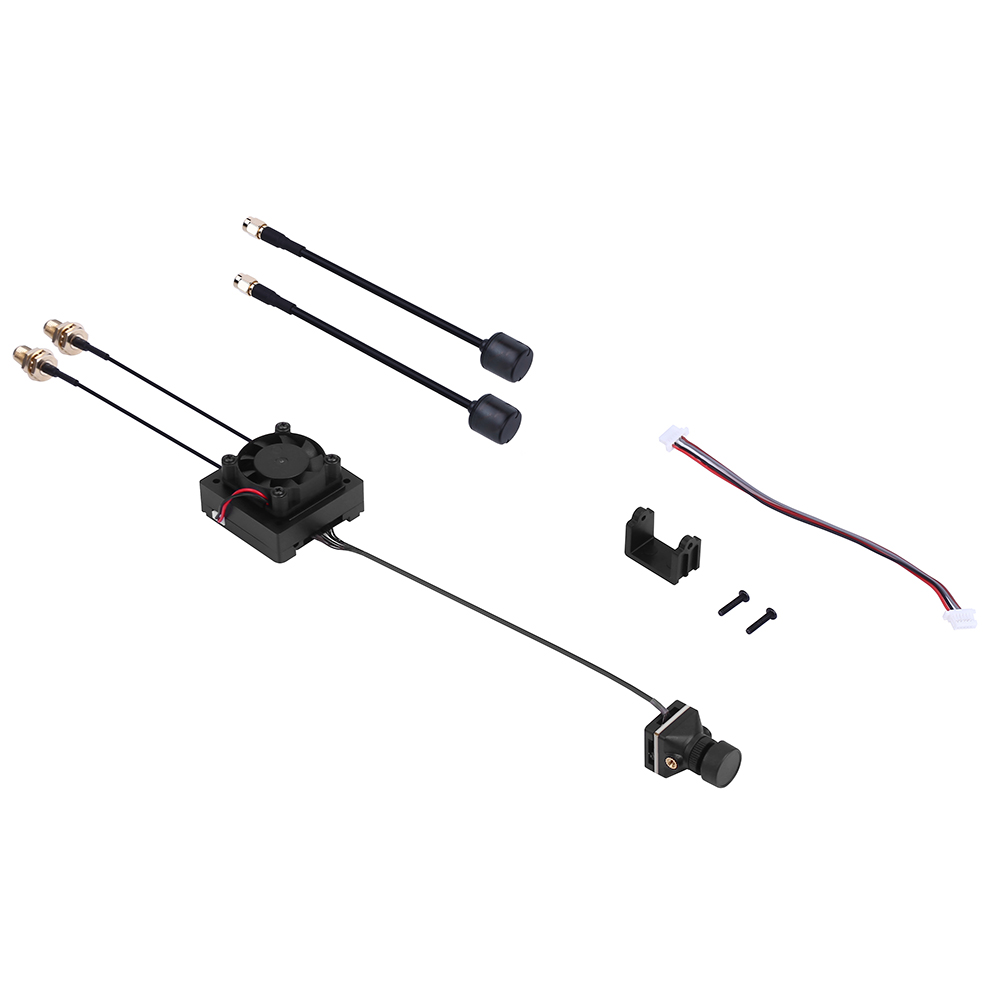

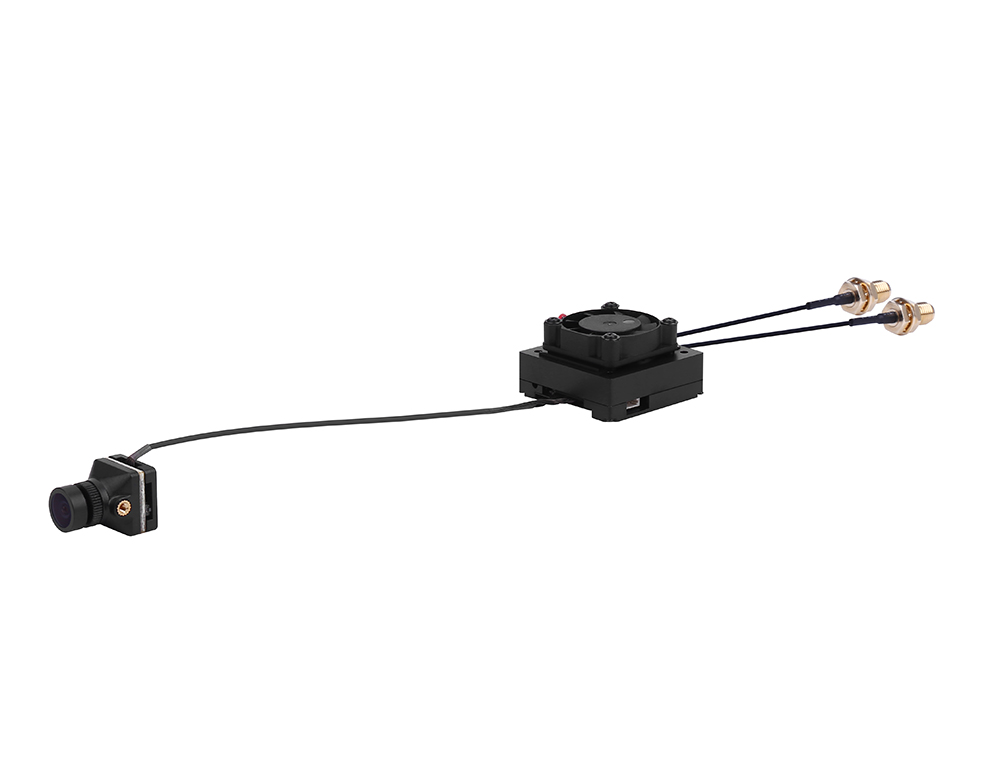

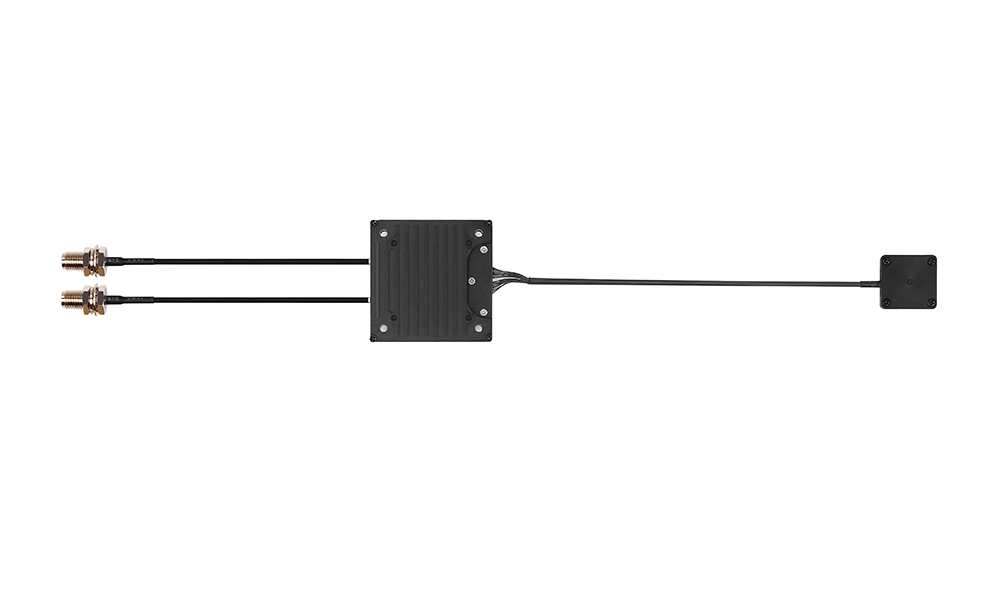

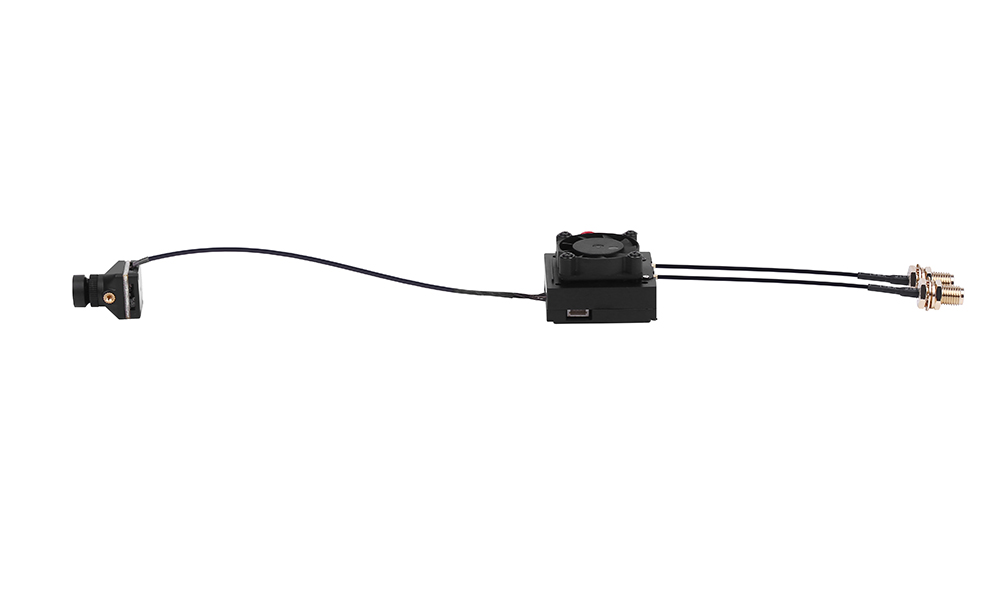

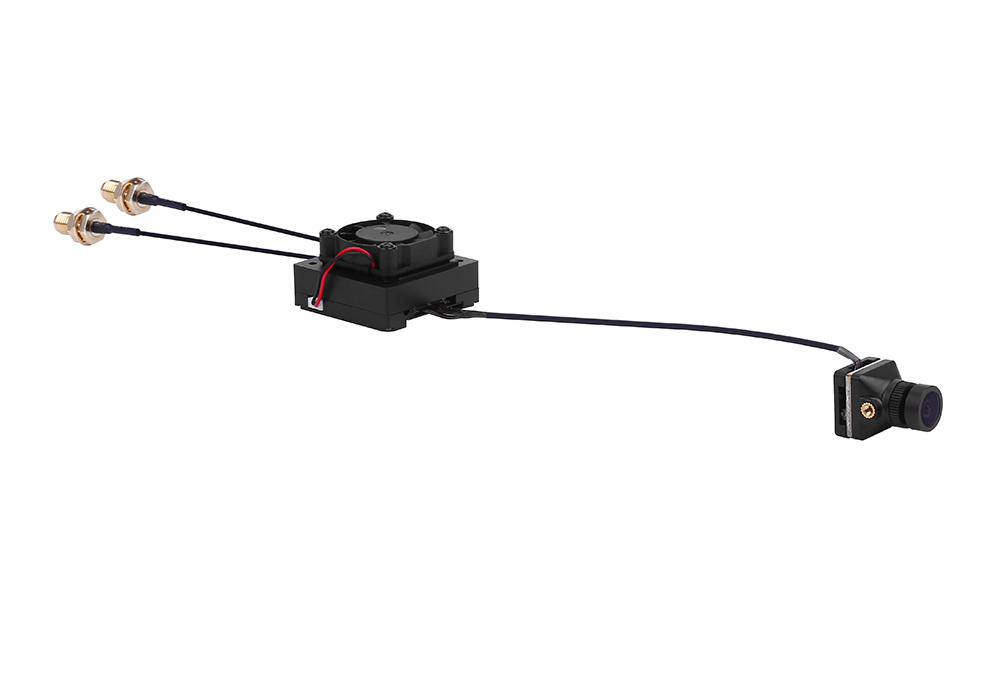

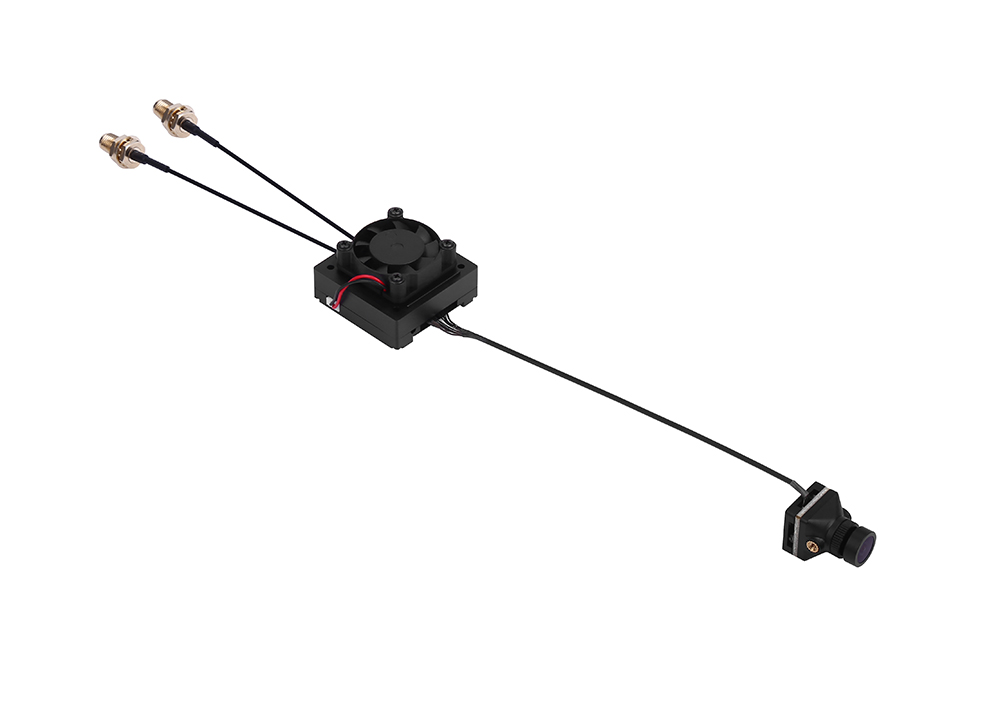

·       Air Unit: camera and transmission module

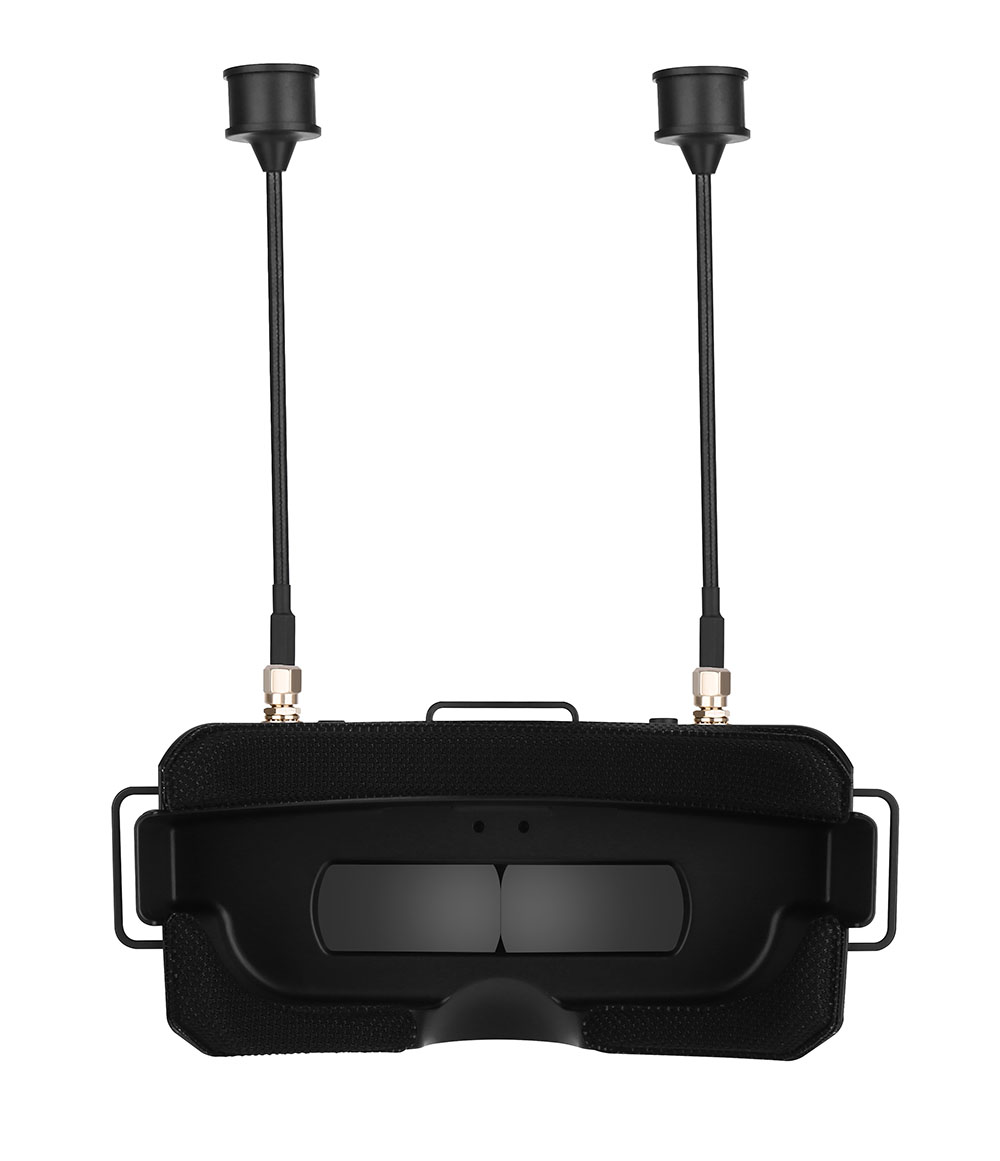

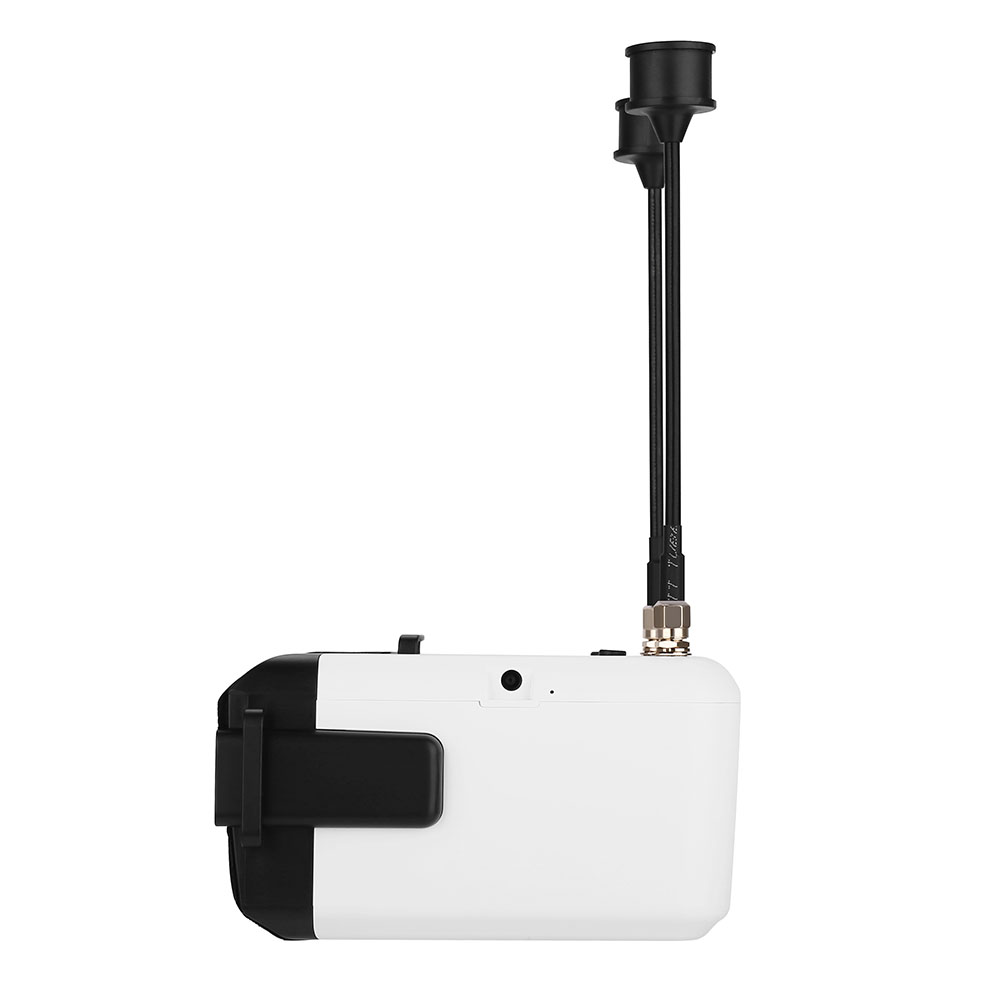

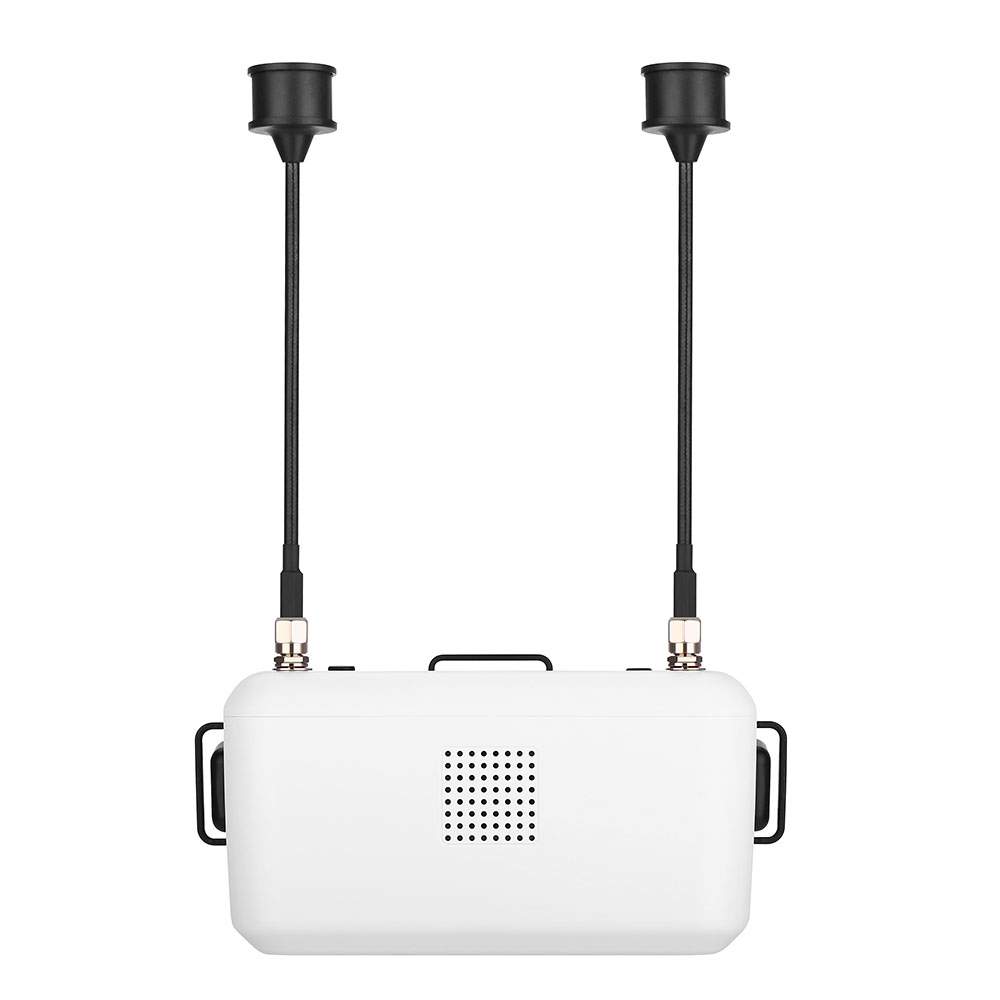

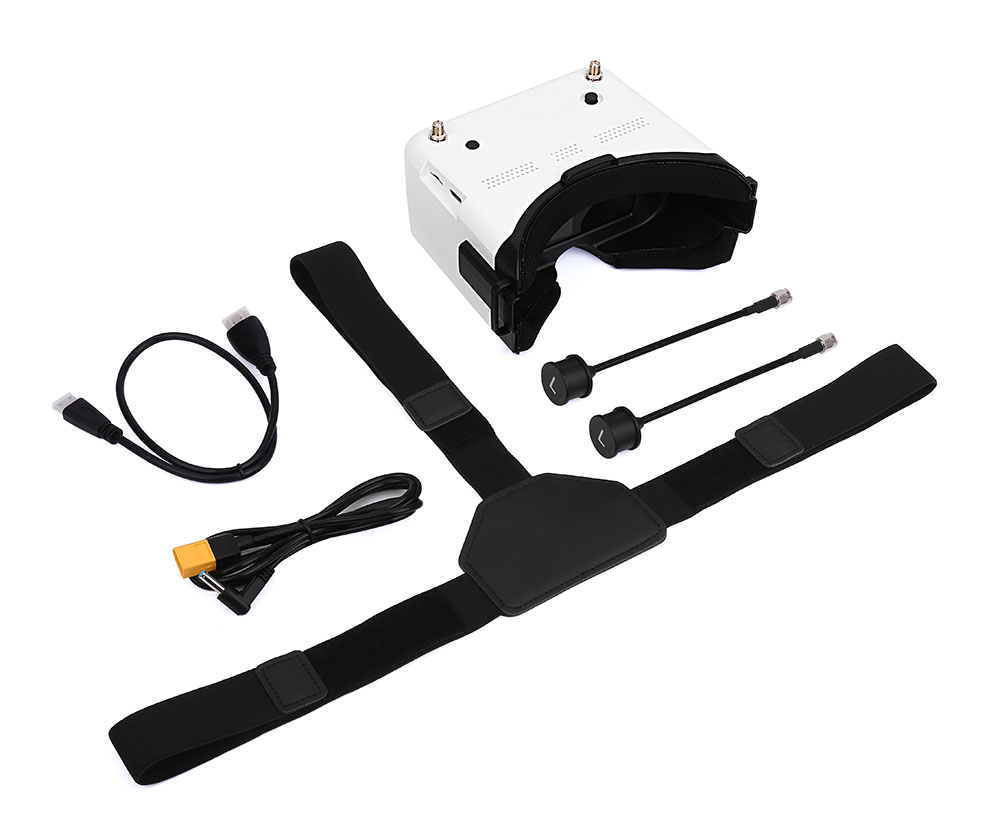

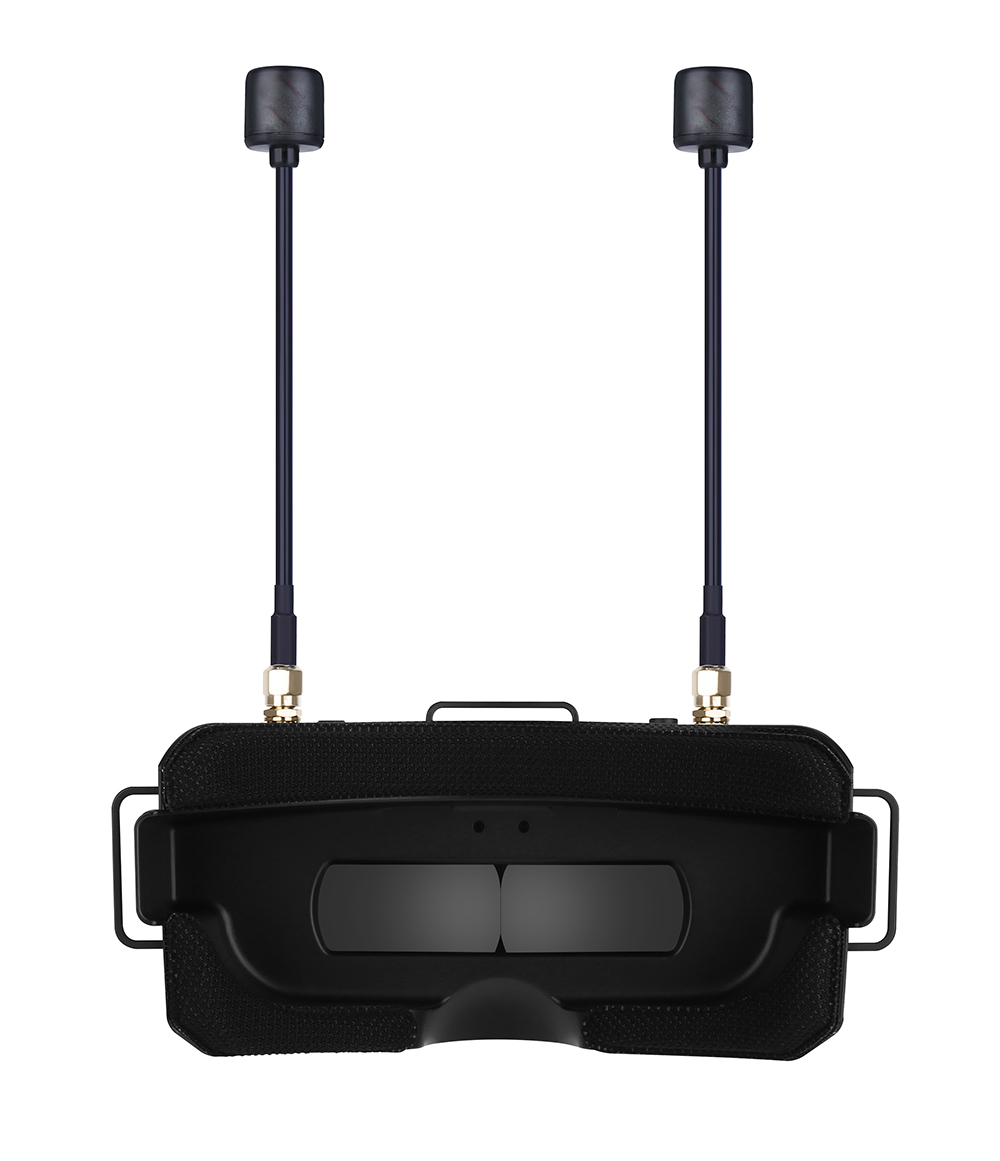

·       Ground Unit: Hawkeye HD goggles

No complex setup required — just power on and fly.

Auto HD Recording — Capture Every Flight

Once your aircraft is unlocked, recording automatically begins in 720p/60fps MP4.

When you lock the drone, recording stops automatically.
Prefer manual control? A one-button record feature lets you start or stop footage anytime.

Instant Playback — Record, Review, Relive

The Hawkeye Goggles can play back videos directly from the microSD card.

Watch your flight recordings instantly — with fast-forward and rewind options for quick review and sharing.

Broadcast Mode — Share the Thrill

Activate Broadcast Mode, and other pilots wearing Hawkeye goggles tuned to the same channel can view your live feed in real time.

Perfect for group flights, training, or live event streaming — share the excitement as it happens.

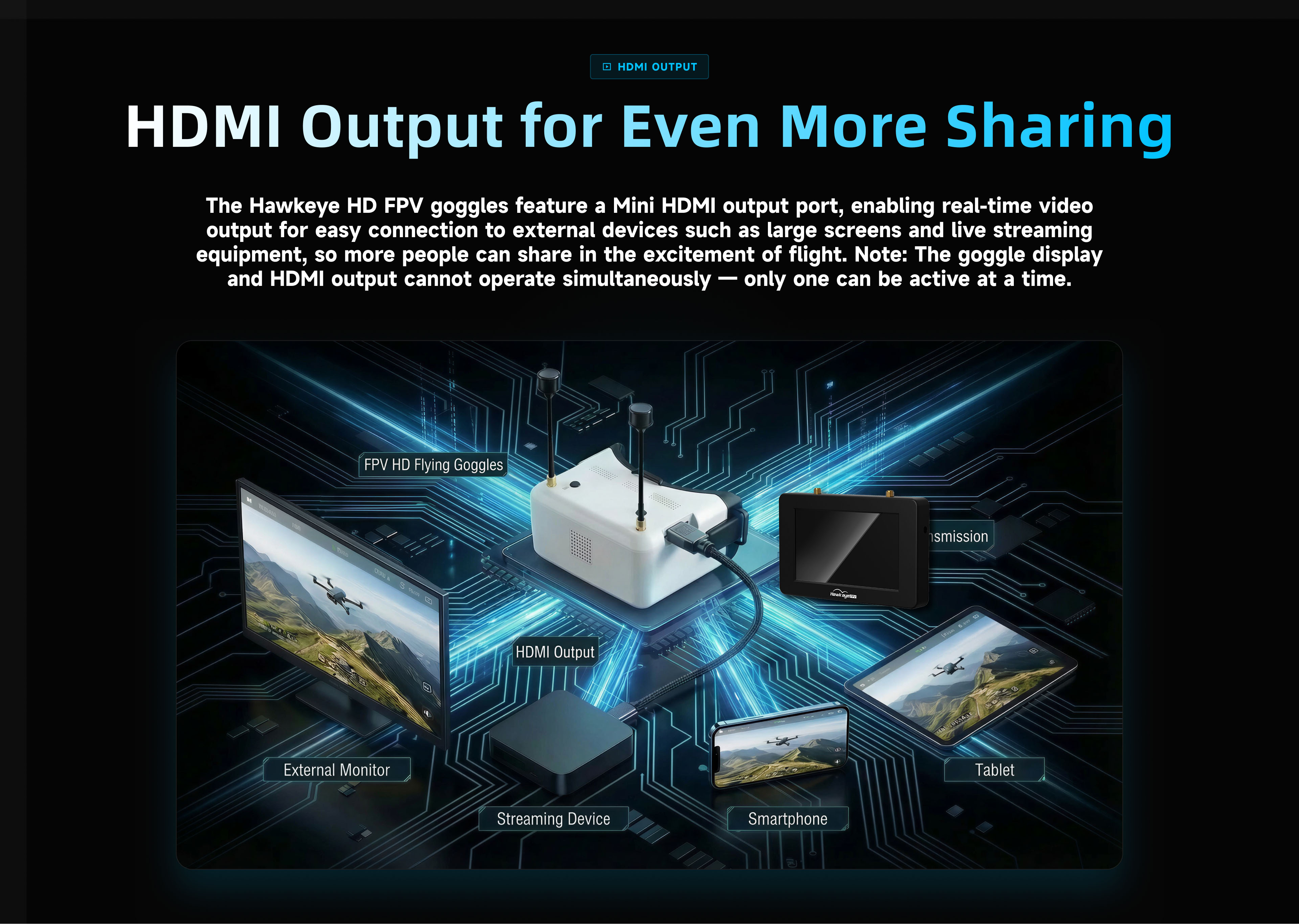

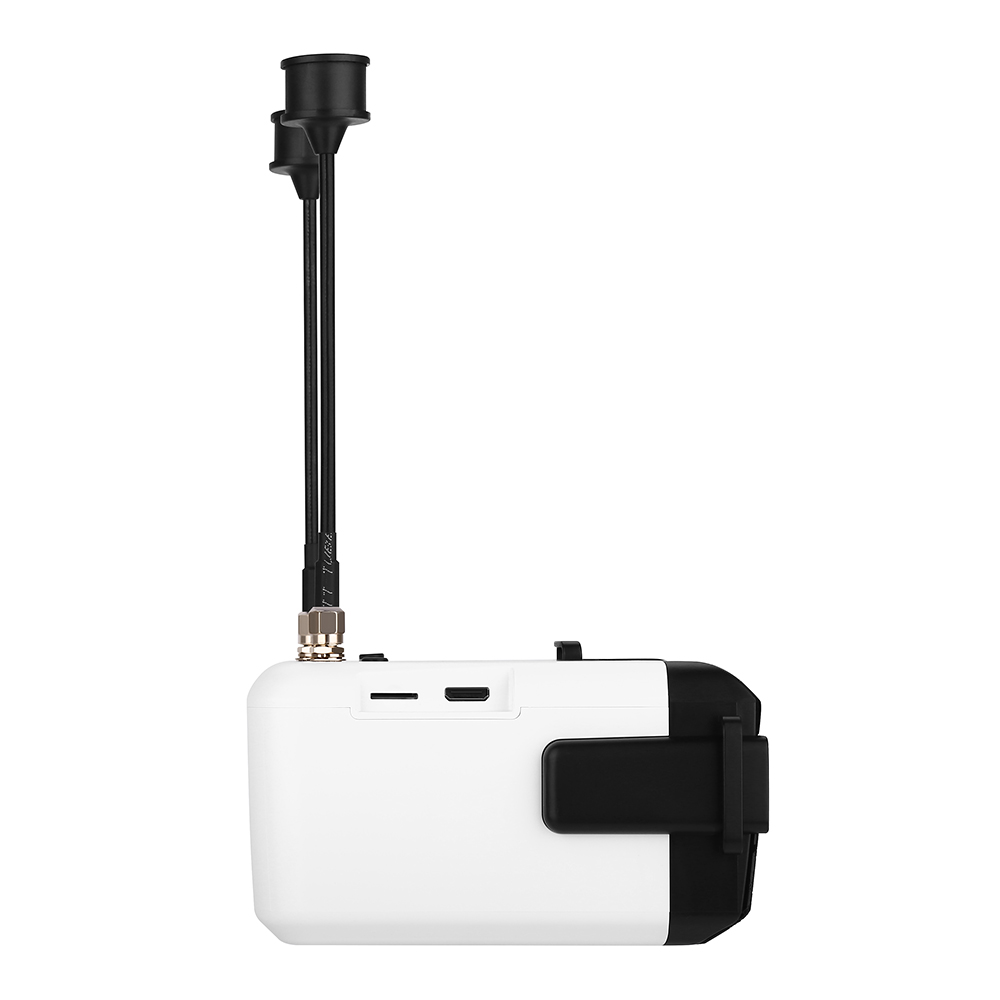

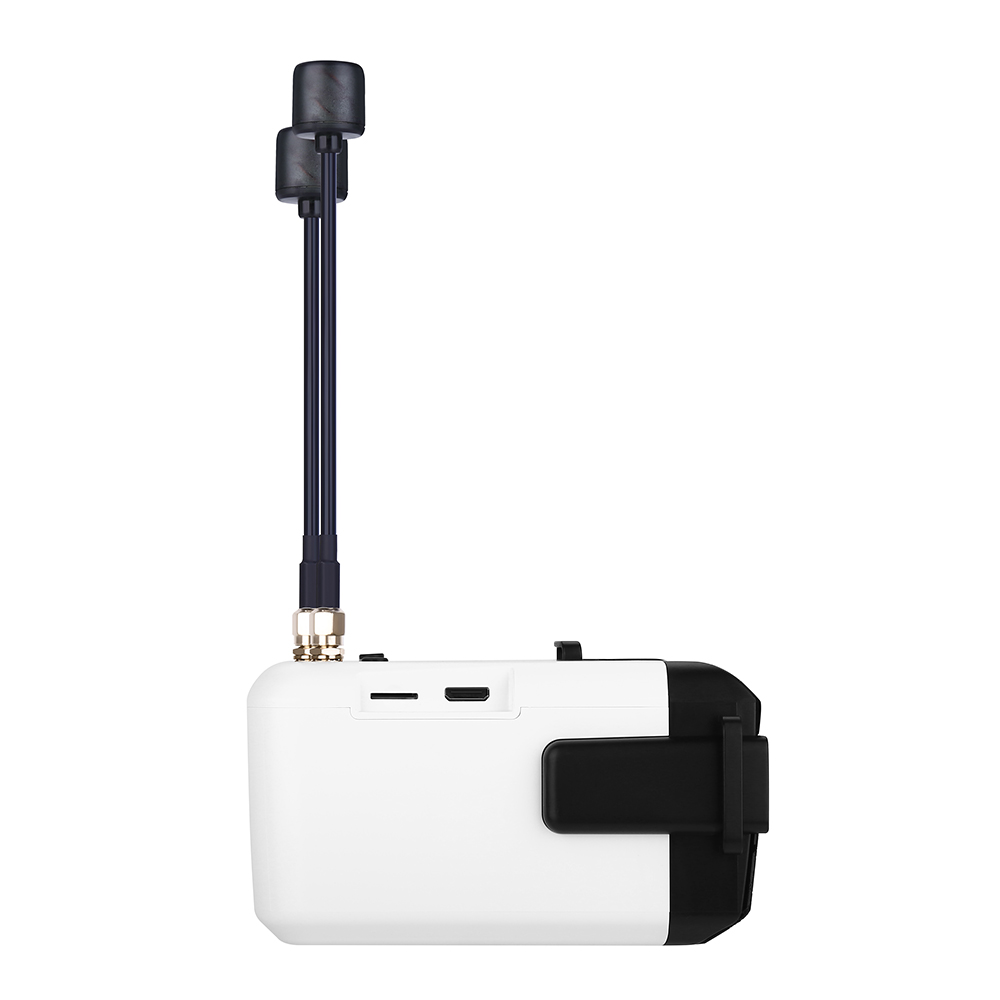

HDMI out —Greater Sharing

The Hawkeye HD FPV Goggles are equipped with a Mini-HDMI output port, designed for real-time transmission of the video feed. This interface facilitates connection to external displays, such as large-scale monitors or live broadcasting equipment, enabling an immersive shared viewing experience.

Note: The video output is exclusive to either the goggle's internal display or the HDMI port; they cannot be active simultaneously

Stable, High-Definition Transmission

Unlike traditional analog systems that suffer from noise and interference, the Hawkeye HD system delivers clear, stable, and interference-resistant video.

Enjoy a smooth, snow-free image that keeps you fully immersed in the flight.

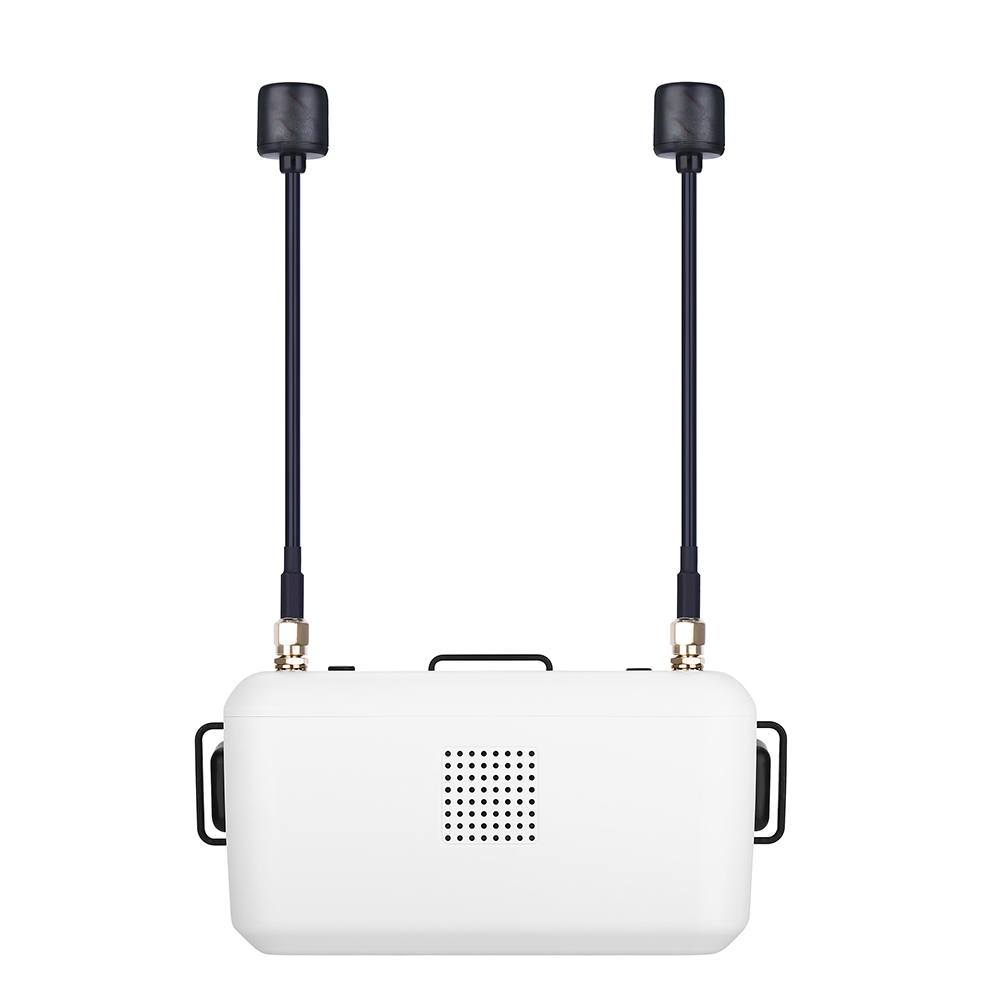

Dual-Antenna Fusion — Reliable Signal Everywhere

Using 2T2R (two-transmit, two-receive) antenna technology, Hawkeye combines data from both antennas in real time with zero-latency fusion, ensuring comprehensive 360° signal coverage and uninterrupted performance.

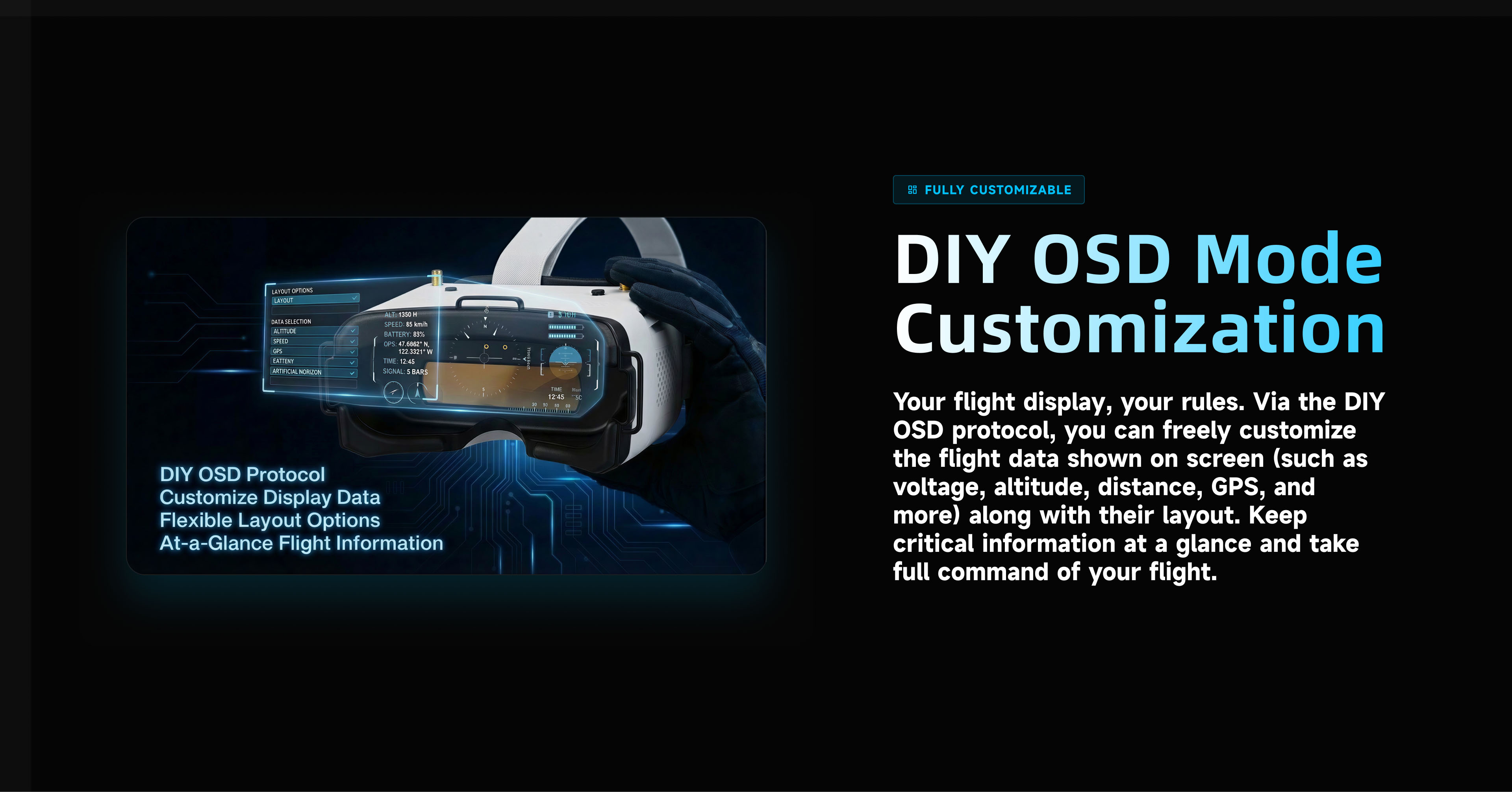

Customizable OSD — Flight Data Your Way

With DIY OSD, you can freely customize on-screen flight information and layout.

Tailor your display to show exactly what matters most — at a glance.

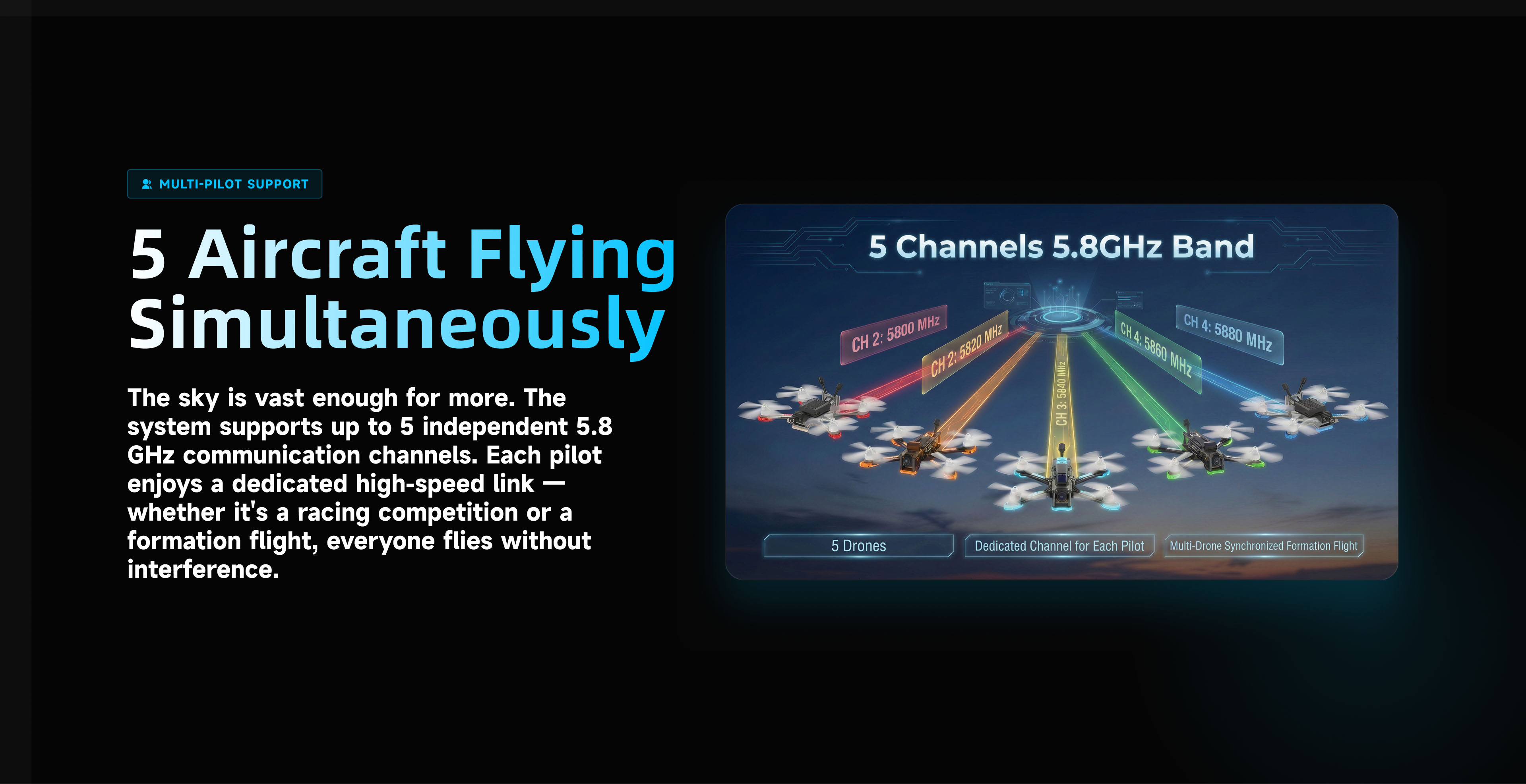

Multi-Pilot Support — Up to 5 Aircraft Simultaneously

Supports five independent 5.8 GHz channels, allowing up to five pilots to fly at once.

Each pilot gets a dedicated channel, guaranteeing zero interference between flights.

Ultra-Wide Vision — See More of the Sky

Experience a 145° ultra-wide field of view, giving you a sweeping perspective for every maneuver.

Choose between a 145° standard lens or a 155° ultra-wide lens to match your flight style and environment.

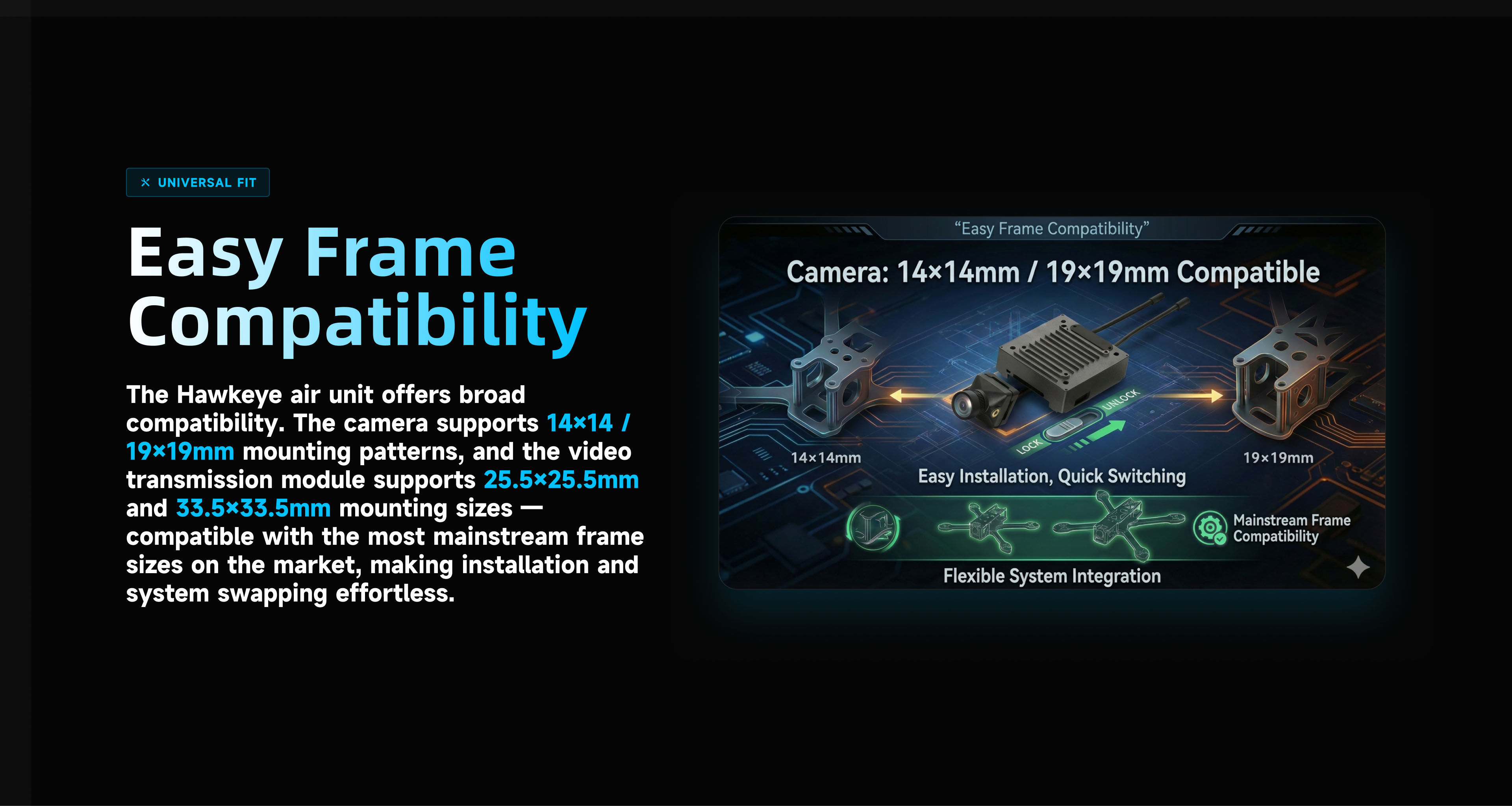

Easy Integration — Fits Most Drone Frames

The Hawkeye Air Unit supports 14×14 mm and 19×19 mm camera mounts, compatible with most mainstream frames.

Install with ease and switch between systems effortlessly.

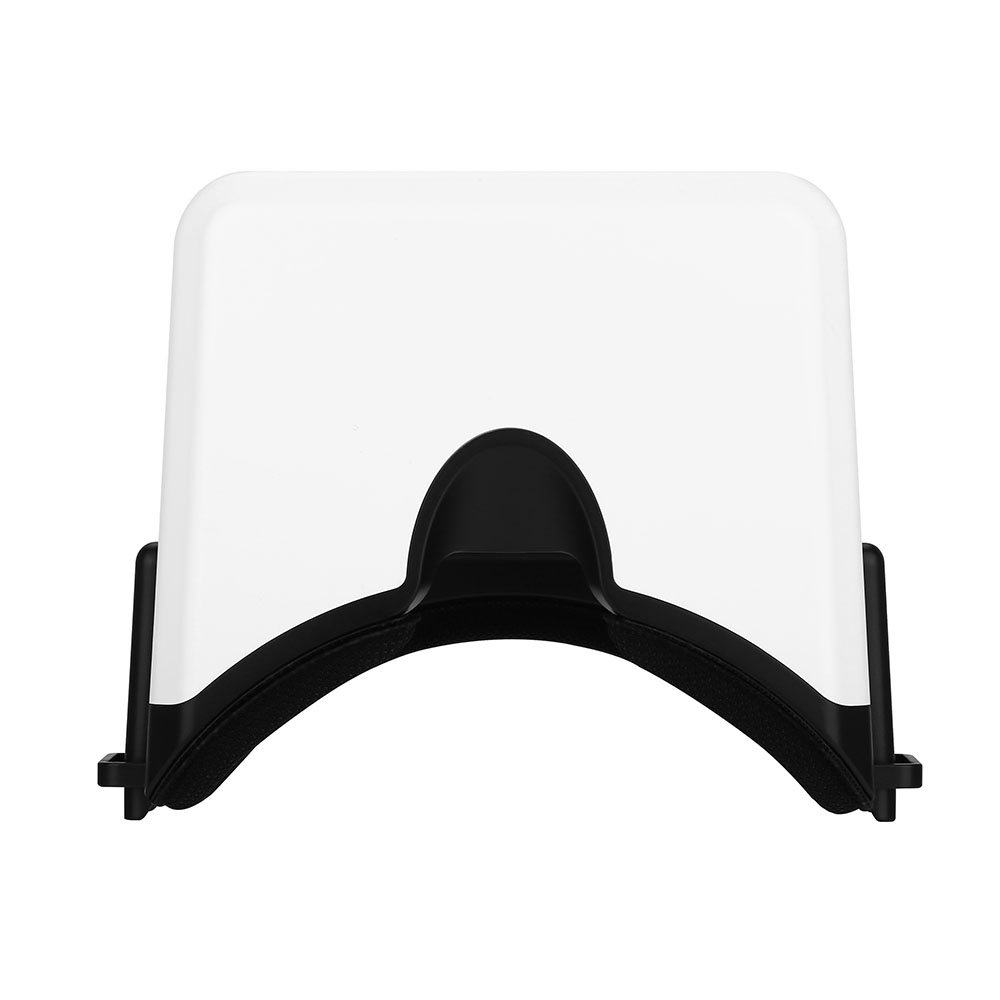

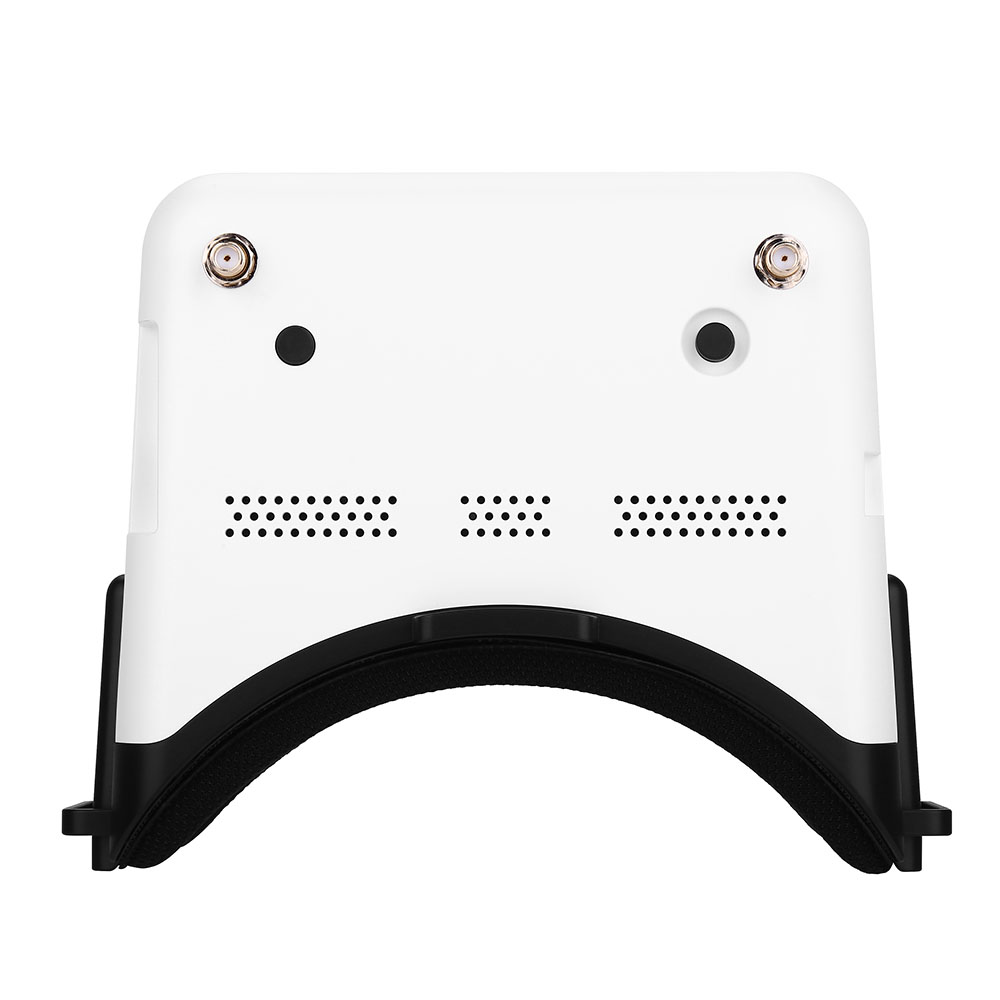

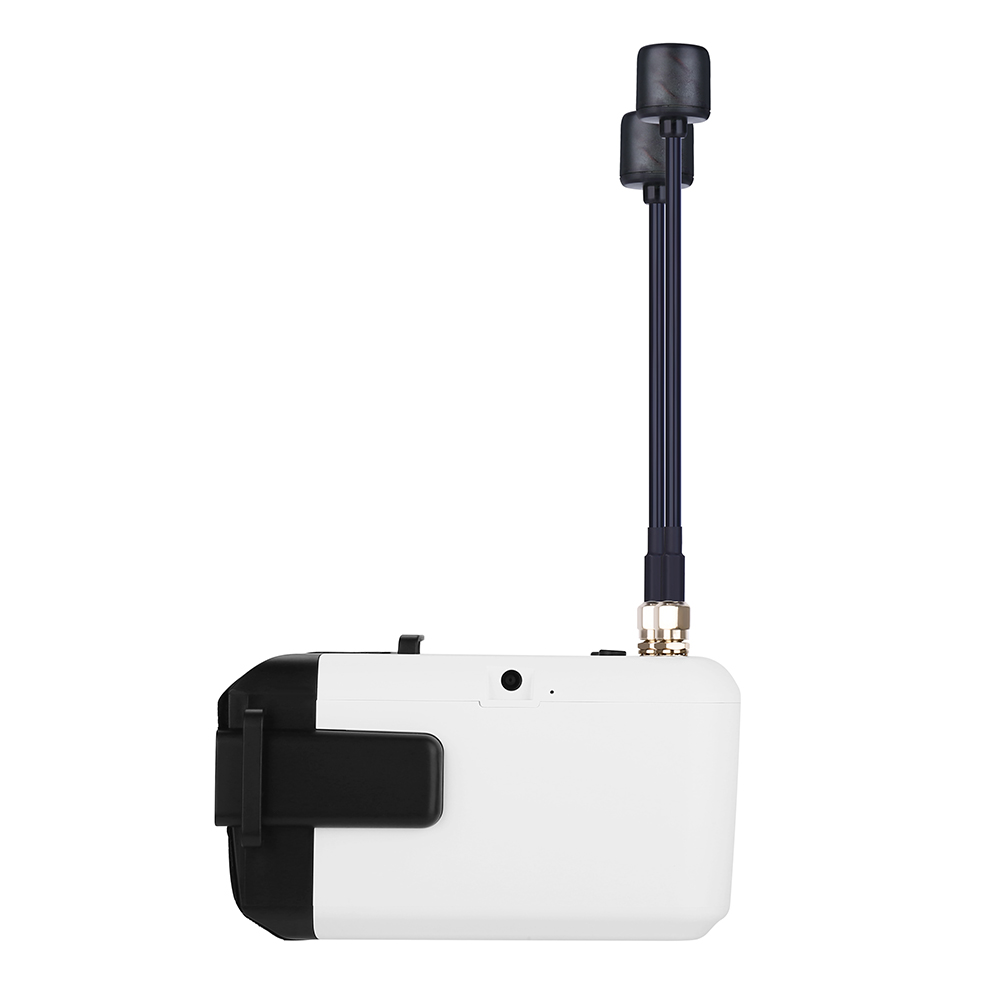

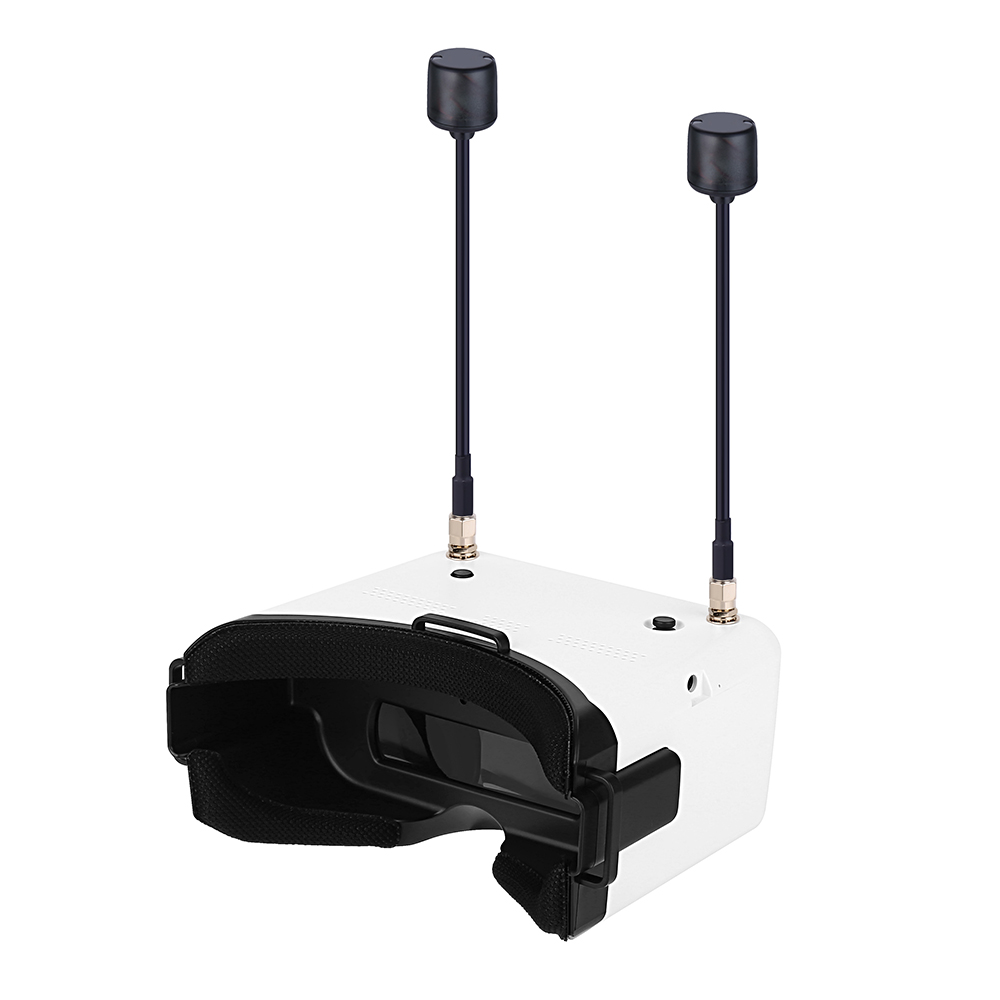

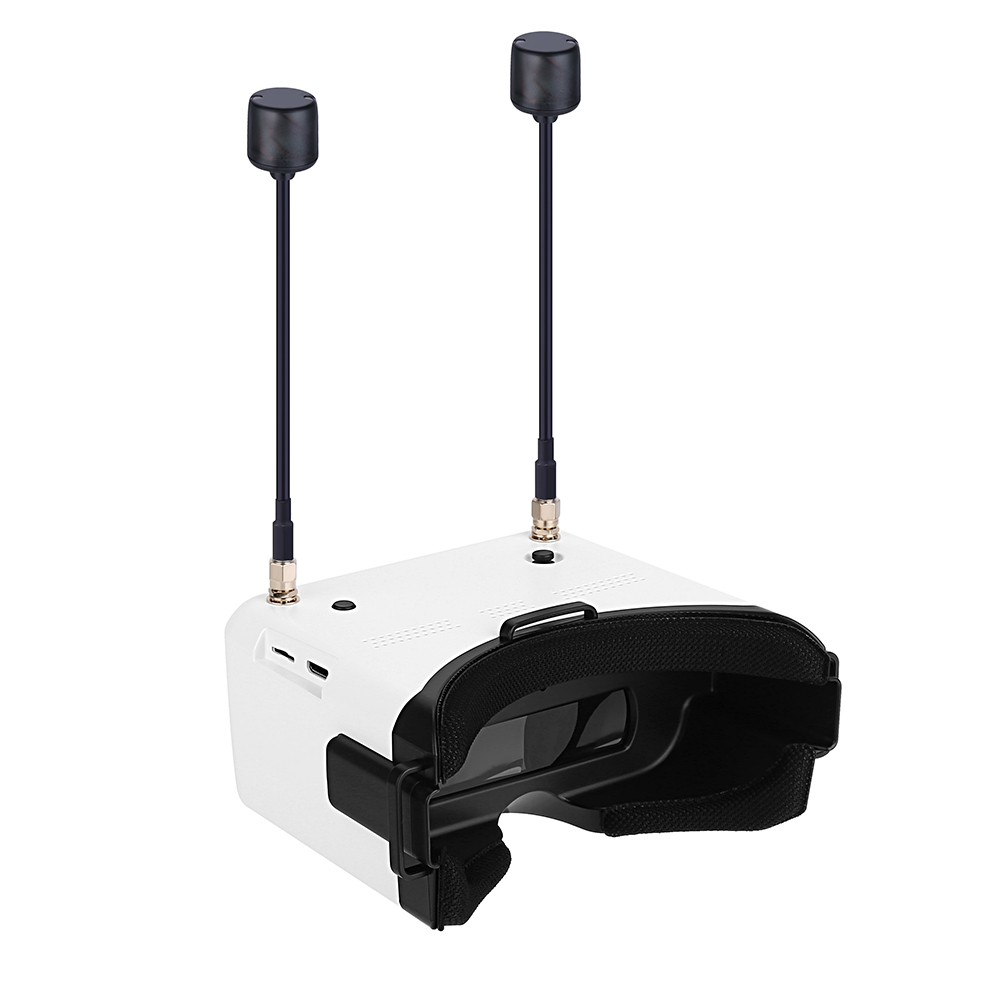

Comfort for All — Designed for Glasses Wearers

The Hawkeye Flight Goggles feature a dedicated frame insert for nearsighted and presbyopic users.

You can wear your own lenses inside the goggles — no need to remove your glasses before flying.
Optional prescription inserts are also available for a perfect fit.
