Hawkeye HD Video Transmission System

Technical Specifications

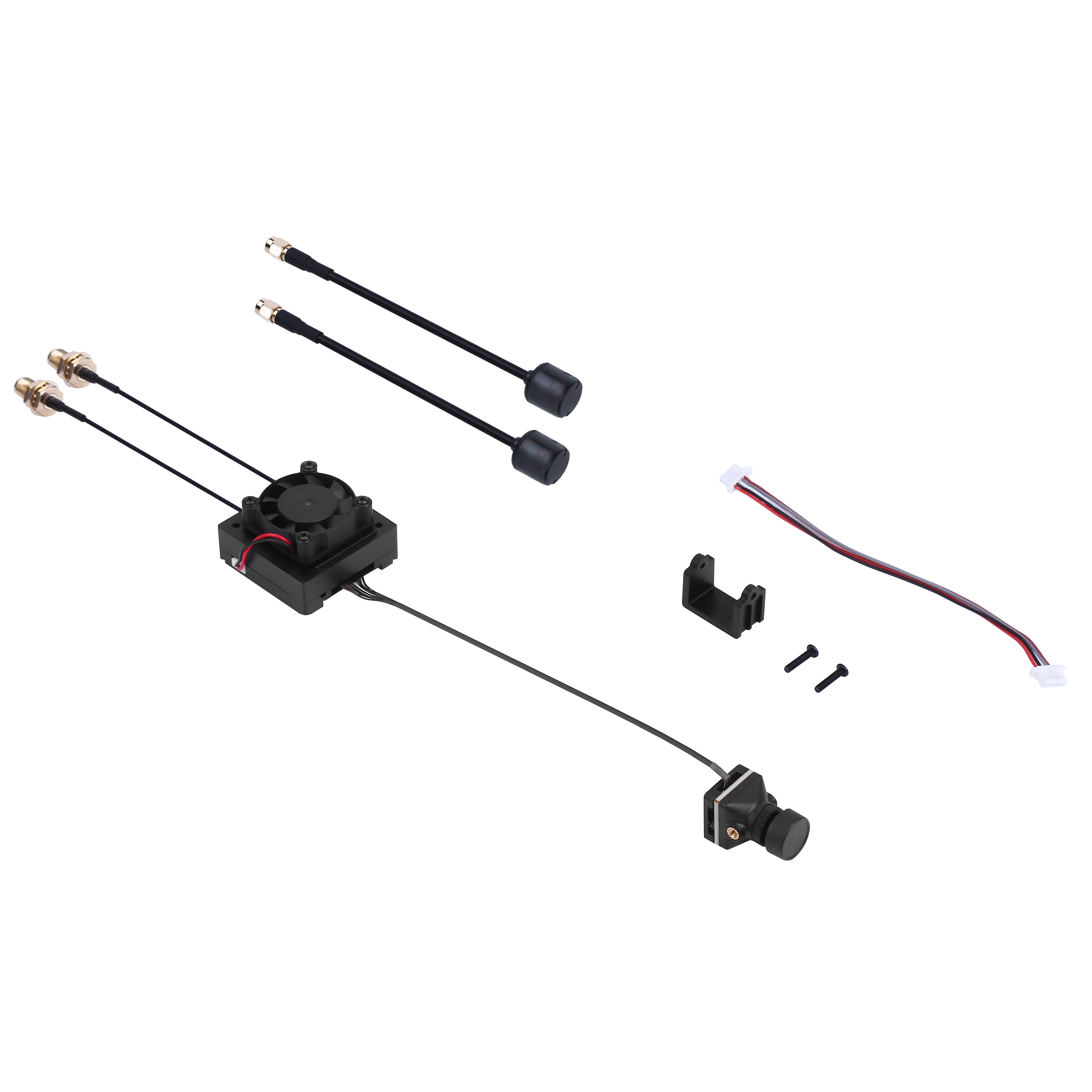

Air Unit

·       Weight: Approx. 32 g (including camera)

·       Dimensions: 32.8 × 32.8 × 13 mm

·       Coaxial Cable Length: 135 ± 2 mm

·       Input Voltage: 7.4 – 26.4 V

·       Operating Temperature: -10°C to 40°C

·       Flight Controller Compatibility: BetaFlight version 4.3.0 or later

Video Transmission

·       Operating Frequency: 5.825 – 5.950 GHz
Frequency bands and availability vary by region. Please comply with local regulations.

·       Transmission Power (5.8 GHz):

o   < 30 dBm*2 (FCC)

o   < 14 dBm *2(CE)

o   < 30 dBm *2(SRRC)

·       Low Latency Performance:
When used with Hawkeye HD Goggles:

o   720p/60fps video transmission latency as low as 35 ms
Measured in open, interference-free environments. Latency may vary depending on the device and conditions.

·       Maximum Transmission Range:
Paired with Hawkeye HD Goggles and 11 dB flat antenna:

o   Up to 10 km (FCC)
Measured in open, unobstructed, interference-free conditions.

·       Live Video Quality: 720p @ 60fps

·       Transmission Bandwidth: Up to 20 MHz

·       Antenna Configuration: Dual antennas (2T2R – two transmit, two receive)

Camera

·       Image Sensor: 1/2.8" CMOS sensor

·       Lens Options: FOV 155° (selectable)

·       Video Format: MP4

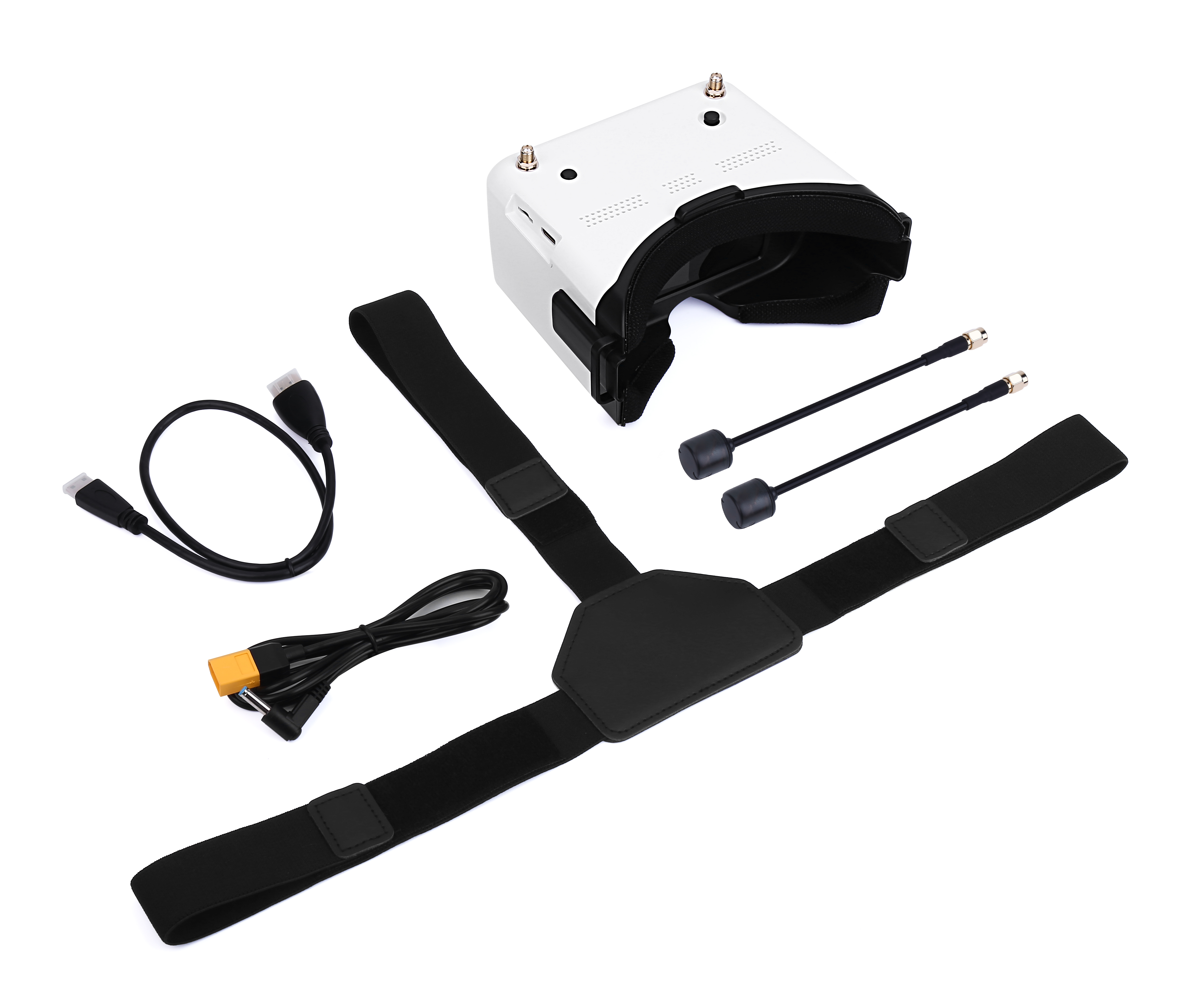

HD Goggles:

·       Weight                          Approx 350g（Antennas not include）

·       Dimension                    153mm *123mm * 71mm

·       Power                           7.4-26.4V( 2-6S )

·       Power connector                4530（DJI Goggles2 / 4530 to XT60

·       Operating Temperature      -20℃ to 40℃

·       Antenna port                      SMA-Female

·       Screen                          LCD

·       Resolution                    1280×720@60fps

·       Channels                            5

·       FOV                               75°

·       Video format                       MP4

·       SD Card                        Micro SD, 64G Max

·       HDMI out                            Mini HDMI@1080P60FPS
